Acetylene Gas Manufacturing Unit
This unit manufactures acetylene gas, a highly efficient fuel gas used primarily for welding, cutting, and industrial heating. The production process involves the reaction of calcium carbide with water, followed by purification and compression into cylinders stabilized with acetone and a porous filler material.
- 9 jobs
- 15 KW power
- ₹20.94L project cost
Project cost & finance
Cost of Project
figures in ₹ Lakhs
| Plant & Machinery | 15.5 |
| Other Misc. Assets | 1 |
| Working Capital | 4.44 |
| Total | 20.94 |
|---|
Means of Finance
figures in ₹ Lakhs
| Own Contribution | 2.09 |
| Term Loan | 14.85 |
| Working Capital Loan | 4 |
| Total | 20.94 |
|---|
Raw materials & machinery
- Raw Material Calcium CarbideBuy on Amazon ↗
- Raw Material Lime and CokeBuy on Amazon ↗
- Raw Material AcetoneBuy on Amazon ↗
- Raw Material Chilled MethanolBuy on Amazon ↗
- Machinery Carbide Hopper Filling CartBuy on Amazon ↗
- Machinery Pneumatic HoistsBuy on Amazon ↗
- Machinery Acetylene GeneratorBuy on Amazon ↗
- Machinery Acetylene CondenserBuy on Amazon ↗
- Machinery Ammonia Scrubber unitBuy on Amazon ↗
- Machinery Low pressure dryerBuy on Amazon ↗
- Machinery High pressure dryersBuy on Amazon ↗
- Machinery Acetylene PurifierBuy on Amazon ↗
- Machinery Acetylene Air CompressorBuy on Amazon ↗
- Machinery Pneumatic PumpsBuy on Amazon ↗
- Machinery Water Demineralization PlantBuy on Amazon ↗
- Machinery Acetylene gas filling manifoldBuy on Amazon ↗
Manufacturing process
- Feed calcium carbide granules into the water-filled reaction chamber using a generator with rotating screw and pressure controls.
- Agitate the chamber with rotating paddles to ensure complete reaction and prevent granule floating.
- Draw off the acetylene gas under low pressure and cool it using a water spray.
- Pass gas through a flash arrester and remove byproduct calcium carbonate slurry.
- Scrub the gas to remove ammonia and impurities using a purifier system.
- Compress the gas through three stages to reach final cylinder pressure.
- Pass through high-pressure dryers to remove moisture and oil vapors.

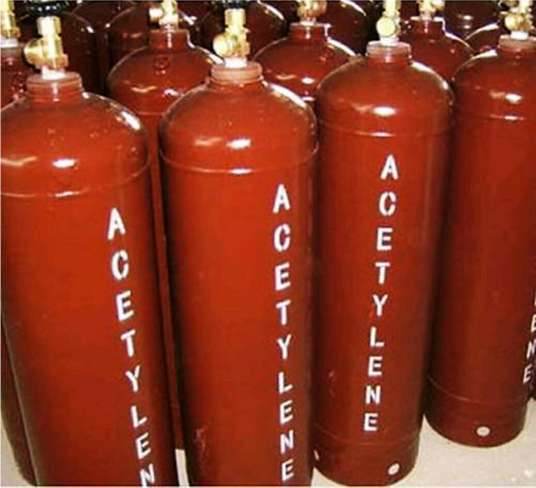

- Fill into cylinders containing liquid acetone and a porous filler material for safe transport.
