Air Spring Manufacturing Unit
This project report outlines the establishment of an air spring manufacturing unit designed to produce components used heavily in vehicle suspension systems, industrial actuators, and vibration insulators. The facility utilizes automated building and turn-up machinery to assemble parts like bellows, pistons, and bead plates to serve the automotive and heavy machinery sectors.
- 12 jobs
- 50 KW power
- ₹24.07L project cost
Project cost & finance
Cost of Project
figures in ₹ Lakhs
| Plant & Machinery | 17 |
| Furniture & Fixtures | 0.6 |
| Working Capital | 6.47 |
| Total | 24.07 |
|---|
Means of Finance
figures in ₹ Lakhs
| Own Contribution | 2.41 |
| Term Loan | 15.84 |
| Working Capital Loan | 5.82 |
| Total | 24.07 |
|---|
Raw materials & machinery

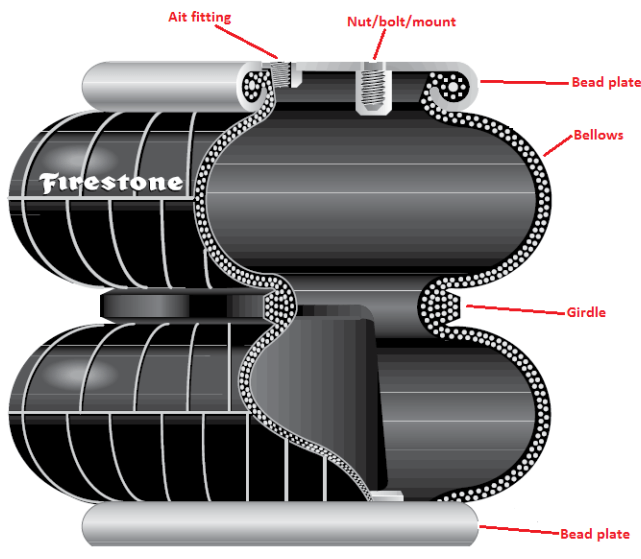

- Raw Material Air FittingBuy on Amazon ↗
- Raw Material Nut/Bolt/MountBuy on Amazon ↗
- Raw Material Bead PlateBuy on Amazon ↗
- Raw Material BellowsBuy on Amazon ↗
- Raw Material GirdleBuy on Amazon ↗
- Raw Material BumperBuy on Amazon ↗
- Raw Material PistonBuy on Amazon ↗
- Machinery Fully automatic Intertech Uni-Stage Building SystemBuy on Amazon ↗
Main manufacturing system
Manufacturing process
- Twin carcass drums optimize cycle time distribution between component application and dynamic stitching plus unloading by manipulator.
- Two dedicated bead setting and turn-up stations are connected to the carcass building station via automatic manipulators and high-speed guides.
- Transfer devices pick up the air spring carcass from the drum and transfer it to the turn-up station.
- Positioning of the carcass is executed automatically by the manipulator while a center lock device holds it in position during bead setting and turn-up.
- The manipulator removes the finished green air spring from the turn-up station and brings it to the unloading station.
- Finished green air springs from both turn-up stations are automatically unloaded by manipulators, with material application controlled by sensors and cameras.
Market
Air springs are widely utilized in heavy-duty vehicle suspension systems, amusement park rides, packaging equipment, clutch systems, and conveyor belts. The global market is growing steadily with strong demand in automotive applications.
