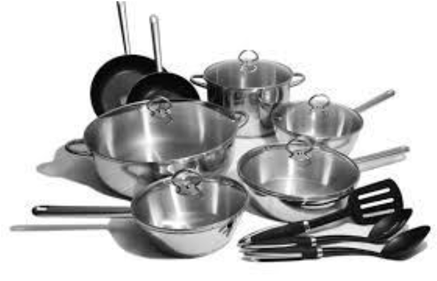

Aluminium Utensils
This project profile covers the manufacturing of domestic aluminium utensils, including sheet rolling and utensil fabrication. The unit produces various houseware items such as cooking pots, storage vessels, and catering utensils to cater to domestic and commercial markets.
Project cost & finance
Cost of Project
figures in ₹ Lakhs
| Building & Civil Work | 4.5 |
| Plant & Machinery | 8.66 |
| Furniture & Fixtures | 0.46 |
| Other Misc. Assets | 1 |
| Working Capital | 10.38 |
| Total | 25 |
|---|
Means of Finance
figures in ₹ Lakhs
| Own Contribution | 2.5 |
| Term Loan | 13.16 |
| Working Capital Loan | 9.34 |
| Total | 25 |
|---|
Raw materials & machinery
Machinery & equipment16
- Oil fired pit furnaceBuy on Amazon ↗
Furnace with burners and overhead oil tank
- Blower with 3 HP MotorBuy on Amazon ↗
- Oil-line preheaterBuy on Amazon ↗
- Annealing furnaceBuy on Amazon ↗
1800 X 600 mm for annealing sheets and circles
- Aluminium Hot rolling MillBuy on Amazon ↗
Heavy type fitted with forged rolls size 350X 900 mm with fly wheel 40 HP motor
- Aluminium cold rolling millBuy on Amazon ↗
350 X 900 mm High carbon high chromium Steel Rolls Heavy duty with 40 HP electric motor
- Hand operated sheering MachineBuy on Amazon ↗
900 mm
- Circle cutting machineBuy on Amazon ↗
With motor
- Hand fly press No. 4Buy on Amazon ↗
For light punching
- Double action deep drawing power pressBuy on Amazon ↗
100 MT with 15 HP motor
- Spinning LatheBuy on Amazon ↗
Centre height 350 mm
- Electronic weighing machineBuy on Amazon ↗
Up to 1000 kg capacity
- Centre LatheBuy on Amazon ↗
2.5 M bed
- Pillar drilling machineBuy on Amazon ↗
25 mm capacity
- Arc Welding TransformerBuy on Amazon ↗
300 Amps
- Bench grinderBuy on Amazon ↗
200 X 25 mm wheel size
Raw materials1
- Aluminium SheetsBuy on Amazon ↗
Commercial grade aluminium of purity 99 to 99.5% in the form of sheets or circles
Manufacturing process
- Blanking, Punching and piercing to cut out portions of the metal sheet.
- Deep drawing to shape and size the metal sheet according to the required design.
- Metal forming by spinning along the die surface to achieve the desired profile.
- Bulging process to expand the metal and force it to protrude.
- Beading and Curling to roll the metal under a die and create a reinforced edge ring.
- Coining or embossing to reduce the base thickness up to a maximum of 30%.
- Extruding, necking, and rib forming to shape features on the surface.
- Trimming to remove excess metal and obtain the finished part.
- Anodizing, polishing, and inspecting the manufactured utensils.
- Bunching finished utensils into sets and packing them for dispatch while recirculating scrap.
Market
Aluminium domestic utensils enjoy steady demand in both urban and rural areas due to their light weight, high heat conductivity, and affordability. They are widely used by middle and lower-income households as well as commercial catering establishments such as hotels, canteens, and restaurants.
From the project report
