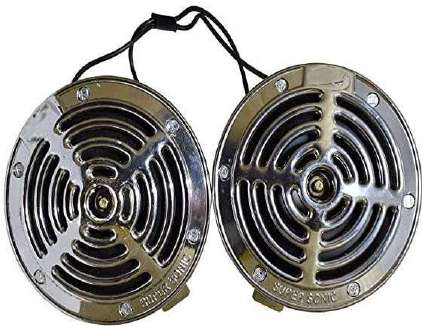

Electric Horns Manufacturing Unit
This project profile covers the establishment of a manufacturing unit for electric horns used in automobiles, motor vehicles, and bicycles. The unit utilizes press machinery, coil winding, and painting processes to produce functional warning horns.
Project cost & finance
Cost of Project
figures in ₹ Lakhs
| Plant & Machinery | 18 |
| Other Misc. Assets | 1 |
| Working Capital | 4.24 |
| Total | 23.24 |
|---|
Means of Finance
figures in ₹ Lakhs
| Own Contribution | 2.32 |
| Term Loan | 17.1 |
| Working Capital Loan | 3.82 |
| Total | 23.24 |
|---|
Raw materials & machinery
Machinery & equipment9
- Hydraulic PressBuy on Amazon ↗
Machine to form electric horn body and parts
- NC milling machineBuy on Amazon ↗
Machine to finish difficult edges of horn body
- Drill machineBuy on Amazon ↗
Machine to drill holes in the horn
- Spot welding transformerBuy on Amazon ↗
Machine to weld horn components
- Riveting MachineBuy on Amazon ↗
Machine to rivet horn body
- Cold winding machineBuy on Amazon ↗
Machine to wind electric horn coils
- Universal grinding machineBuy on Amazon ↗
Machine for grinding horn parts
- Arc welding machineBuy on Amazon ↗
Machine for continuous welds
- Paint gunBuy on Amazon ↗
Paint application equipment for powder coating finish
Raw materials4
- Die cast horn bodyBuy on Amazon ↗
Die cast horn body for acoustic resonance
- Diaphragm steel sheetBuy on Amazon ↗
Flexible spring steel sheet for diaphragm
- Enameled copper wireBuy on Amazon ↗
Copper wire for electromagnetic coil
- Contact pointsBuy on Amazon ↗
Electrical contact points for circuit interruption
Manufacturing process
- Load sheet metal strips into press machines in the press shop to form components like housing, diaphragm, tone disc, and brackets.
- Send formed components to the paint shop for degreasing, zinc phosphating, powder coating, and curing in an oven at 220 degrees C.
- Wind electromagnetic coils on a dedicated coil winding line.
- Assemble painted components and wound coils sequentially along the assembly line with sensor-based poke-yoke error proofing.
- Test assembled electric horns for quality and performance before final packaging.
Market
Electric horns have consistent demand driven by automobile manufacturing, transport vehicle requirements, and the automotive aftermarket replacement sector.
