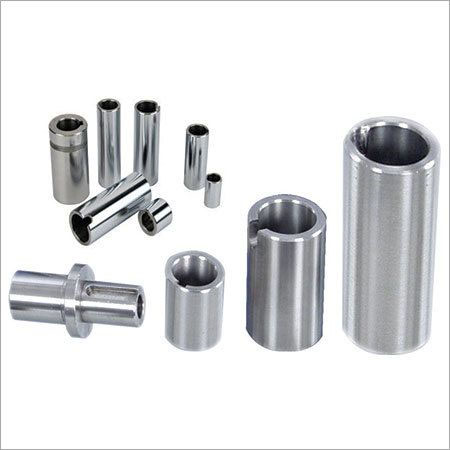

Hard Chromium Plating Unit
This project involves setting up a hard chromium plating unit to provide industrial coating services. The process enhances the durability, wear resistance, and heat resistance of engineering components like cutting tools, dies, and piston rods.
Project cost & finance
Cost of Project
figures in ₹ Lakhs
| Building & Civil Work | 4 |
| Plant & Machinery | 9 |
| Furniture & Fixtures | 2 |
| Working Capital | 5.56 |
| Total | 20.56 |
|---|
Means of Finance
figures in ₹ Lakhs
| Own Contribution | 2.06 |
| Term Loan | 13.5 |
| Working Capital Loan | 5 |
| Total | 20.56 |
|---|
Raw materials & machinery
Machinery & equipment8
- Silicon Rectifier 1000ABuy on Amazon ↗
- Hard Chromium plating tankBuy on Amazon ↗
- Etching tankBuy on Amazon ↗
- Anodic cleaning tankBuy on Amazon ↗
- Dragout tankBuy on Amazon ↗
- Immersion heatersBuy on Amazon ↗
- Polishing MachineBuy on Amazon ↗
- Water swill tankBuy on Amazon ↗
Raw materials3
- Hard Chrome SaltBuy on Amazon ↗
- Chromic AcidBuy on Amazon ↗
- Other chemicals & consumablesBuy on Amazon ↗
Manufacturing process
- Pre-clean steel parts in a hot alkaline soak cleaner and rinse thoroughly.
- Perform anodic etching in a chromic sulphuric bath for 1-2 minutes for proper adhesion.
- Transfer the parts to the plating bath for the hard chromium deposition process.
- Rinse the plated parts in a drag-out tank followed by water rinsing and hot water rinsing.
- Heat components of hardened steel to at least 200 degrees Celsius to eliminate hydrogen embrittlement.
From the project report
