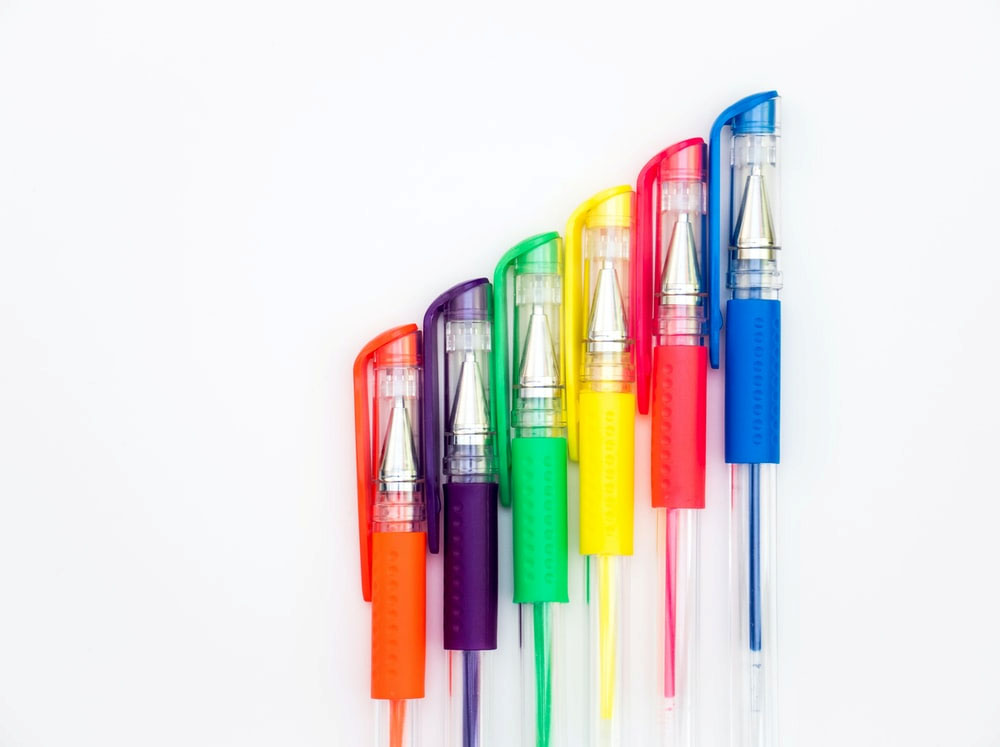

PEN MAKING UNIT
The unit manufactures ballpoint pens by producing refill tubes from polymer plastic granules using an extruder and centrifugal ink filling machine. The process involves assembling the refill, nib, barrel, and cap into finished pens which are then packaged for sale.
Project cost & finance
Cost of Project
figures in ₹ Lakhs
| Building & Civil Work | 3 |
| Plant & Machinery | 6 |
| Furniture & Fixtures | 1 |
| Working Capital | 5 |
| Total | 15 |
|---|
Means of Finance
figures in ₹ Lakhs
| Own Contribution | 1.5 |
| Term Loan | 9 |
| Working Capital Loan | 4.5 |
| Total | 15 |
|---|
Raw materials & machinery
Machinery & equipment4
- Refill Filling MachineBuy on Amazon ↗
- Nib Assembling machineBuy on Amazon ↗
- Pen CentrifugalBuy on Amazon ↗
- Other Hand ToolsBuy on Amazon ↗
Raw materials7
- Ball Pen InkBuy on Amazon ↗
- Ball Pen TipBuy on Amazon ↗
- Pen CapsBuy on Amazon ↗
- Pen BarrelBuy on Amazon ↗
- Front & Back coverBuy on Amazon ↗
- Refill TubeBuy on Amazon ↗
- Polymer Plastic GranulesBuy on Amazon ↗
Manufacturing process
- Feed polymer plastic granules into an extruder to convert them into a semi-solid state.
- Force the semi-solid polymer through a die to form continuous refill tubes.
- Cut the refill tubes to size using a high-speed cutter.
- Attach ball point nibs to the cut refill tubes.
- Fill the refills with ink using a centrifugal ink filling machine.
- Assemble the filled refills with pen barrels and caps.
- Package the finished pens into cartons for distribution.
